Replacement Regulator Rectifier| Can-Am Ski-doo & Yamaha
WHY USE SERIES ENHANCED TECHNOLOGY?
Runs much cooler than the Shunt and MOSFET voltage regulator rectifier.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used extending its lifetime.
The regulator is easier to mount because it’s smaller than the OEM one.
With enhanced technology design
This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.
THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators. A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics limiting current flow through the unit and on to the battery completely. This results in lower regulator and stator temperatures more accurate voltage regulation and increased reliability of your charging system components.

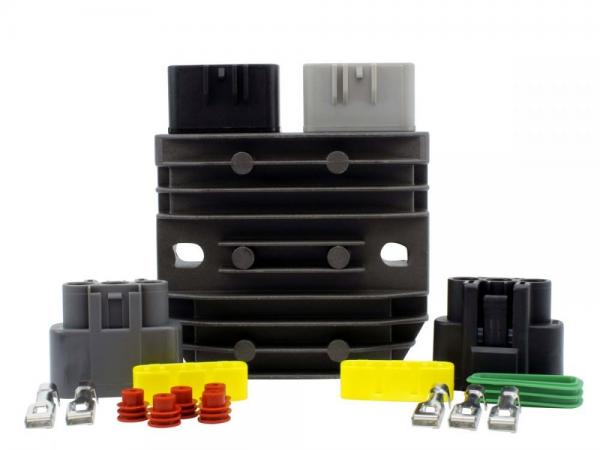

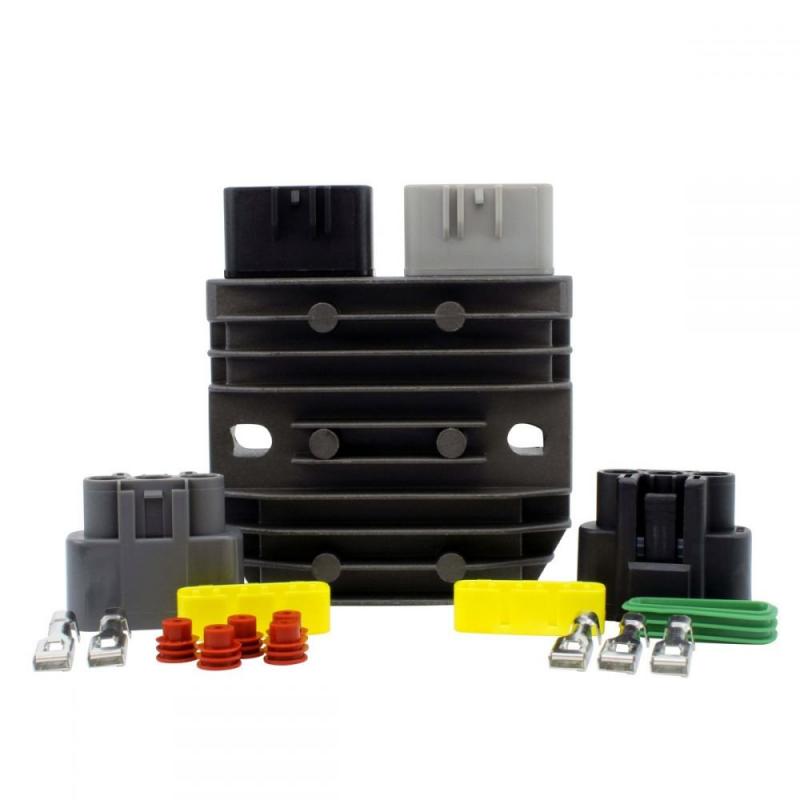

Brand new series voltage regulator rectifier
THE ULTIMATE SOLUTION TO YOUR REGULATOR RECTIFIER PROBLEMS!
It is time to update or replace your voltage regulator with the advanced series type. It runs cooler than all OEM Shunt or MOSFET diode style regulators. In addition this rectifier has overheat protection rather than burn up it will simply turn off for a while and cool off.
Direct replacement to your original unit
Plug-and-play direct fit easy installation
The quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components
All shipped products are tested
We even include the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate if in doubt do not hesitate and compare our item to your original part.
Used on the following applications:
Can-am Defender HD10 1000
2018
2019
Can-am Defender HD5 500
2017
2020
Can-am Defender HD8 800
2018
2019
Can-am Outlander 450
2017
2020
Can-am Outlander 450 T3 EFI F/C
2018
2019
Can-am Outlander 570
2018
2020
Can-am Outlander 570 DPS
2019
Can-am Outlander 570 L XMR
2016
Can-am Outlander 570 T3 DPS EFI F/C
2019
2020
Can-am Outlander 570 T3 EFI F/C
2018
Can-am Outlander 570 T3 PRO EFI L/C
2019
2020
Can-am Outlander 570 T3 Pro Nordic EFI L/C
2020
Can-am Outlander L 450
2015
2016
Can-am Outlander L 500
2015
Can-am Outlander L 570
2016
Can-am Outlander L Max 450
2015
2016
Can-am Outlander L Max 500
2015
Can-am Outlander L Max 570
2016
Can-am Outlander Max 450
2017
2020
Can-am Outlander Max 450 DPS
2017
2020
Can-am Outlander Max 570 T3 EFI F/C
2018
2020
Can-am Outlander Max 570 T3 XT
2020
Can-am Outlander T 450
2020
Can-am Outlander T 570
2020
Can-am Outlander T Max 450
2020
Can-am Outlander T Max 570
2020
Can-am Spyder GS Roadster 990 SE5
2008
2009
Can-am Spyder GS Roadster 990 SM5
2008
2009
Can-am Spyder RS Roadster 990 SE5
2010
2012
Can-am Spyder RS Roadster 990 SM5
2010
2012
Can-am Traxter HD5
2017
2020
Can-am Traxter HD8
2018
Lynx 49 Ranger 600
2012
Lynx 59 YETI 600
2011
2012
Lynx 69 YETI 600
2012
Lynx Adventure 1200 GT
2010
2012
Lynx Adventure 600 GT
2011
2012
Ski-doo Expedition 1200 SE TUV EFI L/C
2010
2019
Ski-doo Expedition 1200 TUV EFI L/C
2010
2017
Ski-doo Expedition 600 Sport ACE EFI L/C
2015
Ski-doo Expedition 900 ACE EFI L/C
2015
2020
Ski-doo Expedition 900 Sport ACE EFI L/C
2016
2017
Ski-doo Expedition 900 SWT ACE EFI F/C
2018
Ski-doo Grand Touring 1200 EFI L/C
2010
2018
Ski-doo Grand Touring 600 HO EFI L/C
2016
2018
Ski-doo Grand Touring 900 ACE EFI L/C
2017
2020
Ski-doo Grand Touring 900 ACE Turbo EFI L/C
2019
2020
Ski-doo Grand Touring Sport 600 ACE EFI L/C
2019
2020
Ski-doo Grand Touring Sport 600 ACE EFI L/C
2011
2014
Ski-doo Grand Touring Sport 600 Carb L/C
2015
Ski-doo GTX 1200 EFI L/C
2009
2015
Ski-doo MX Z 1200 Adrenaline EFI L/C
2010
Ski-doo MX Z 1200 Blizzard
2016
Ski-doo MX Z 1200 EFI L/C
2009
2018
Ski-doo MX Z 1200 Renegade EFI L/C
2009
Ski-doo MX Z 1200 TNT EFI L/C
2009
2016
Ski-doo MX ZX 1200 EFI L/C
2009
2016
Ski-doo MX ZX 1200 Renegade EFI L/C
2009
Ski-doo Renegade 1200 Adrenaline EFI L/C
2010
2018
Ski-doo Renegade 1200 Enduro
2016
2018
Ski-doo Renegade 900 Adrenaline ACE EFI L/C
2016
Ski-doo Renegade 900 Enduro ACE
2016
2018
Ski-doo Renegade X 1200 EFI L/C
2010
2015
Ski-doo Skandic 600 SWT ACE EFI L/C
2016
2017
Ski-doo Skandic 600 SWT ACE EFI L/C
2012
2014
Ski-doo Skandic 600 WT ACE
2011
2020
Ski-doo Skandic 900 SWT EFI L/C
2019
2020
Ski-doo Skandic 900 SWT EFI L/C
2015
2017
Ski-doo Skandic 900 WT EFI L/C
2015
2020
Ski-doo Tundra 600 LT ACE EFI L/C
2019
Ski-doo Tundra 600 LT ACE EFI L/C
2012
2017
Ski-doo Tundra 600 Sport ACE EFI L/C
2020
Ski-doo Tundra 600 Sport ACE EFI L/C
2012
2018
Yamaha MT-07
2018
2020
Yamaha MXT 900 Niken
2019
Yamaha MXT 900 Niken GT
2019
2020
Yamaha Tracer 900
2019
2020
Yamaha XTZ 700 Tenere
2021
Yamaha YFM 450 Kodiak
2020
Yamaha YFM 700 Grizzly
2019
2020
Yamaha YFM 700 Kodiak
2019
2020
Yamaha YXZ 1000 R EPS
2019
2020
Yamaha YXZ 1000 R EPS SS
2019
2020
Replaces these genuine manufacturers’ part numbers:
B5H-81960-00-00
710005569
1D7-81960-10-00
515177325
278002021
515177000
For full application / interchanges listing please see our part Application / Fitment section below
| Type | Vehicle Ignition Parts |
|---|---|
| Part | Regulator Rectifier For SERIES | Can-am Ski-Doo + Yamaha | 2008-21 |
| OEM/Part No. | RMS020-106974 |
