You must re-install your original connector (see picture).
Once your connector is re-installed our part becomes a Plug-and-play unit direct fit and very easy to install.
Higher grade of electric components.
Highest grade copper windings resistant to 200 degrees Celsius.
Pick up pulsar coil included
Grommet included
All products shipped are tested
One year limited warranty
*18 pole stator (There is more than one possible stator for the 2004 Sportsman 400 )
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Used on
Polaris
ATP 500
2005
-2005
Hawkeye 400 HO
2013
-2014
Scrambler 500
2004
-2006
Scrambler 500 2x4 Int'l
2007
-2008
Scrambler 500 4x4
2010
-2012
Scrambler 500 4x4 Carb
2007
-2009
Scrambler 500 4x4 INTL
2011
-2012
Scrambler 500 4x4 Int'l
2010
-2010
Sportsman 400
2004
-2005
Sportsman 400 HO
2008
-2014
Sportsman 450
2006
-2006
Sportsman 500
2004
-2006
Sportsman 500 6x6
2007
-2008
Sportsman 500 HO
2004
-2005
Sportsman 500 HO
2012
-2012
Sportsman 500 HO Carb
2006
-2006
Sportsman 500 HO Carb
2008
-2009
Sportsman 500 HO Forest
2012
-2013
Sportsman 500 Ho Touring
2013
-2013
Polaris
Ranger 400 Carb
2010
-2014
Replaces the following OE reference numbers
3089249
3089546
| Type | Vehicle Generator Parts |
|---|---|

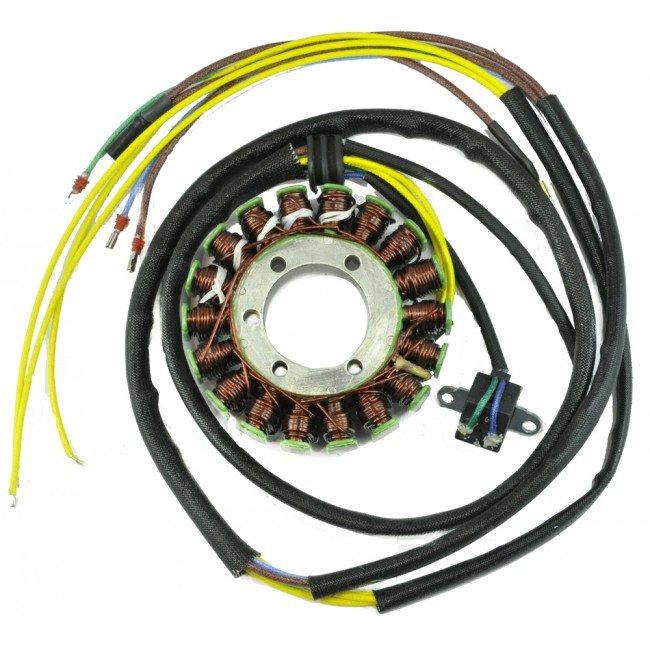

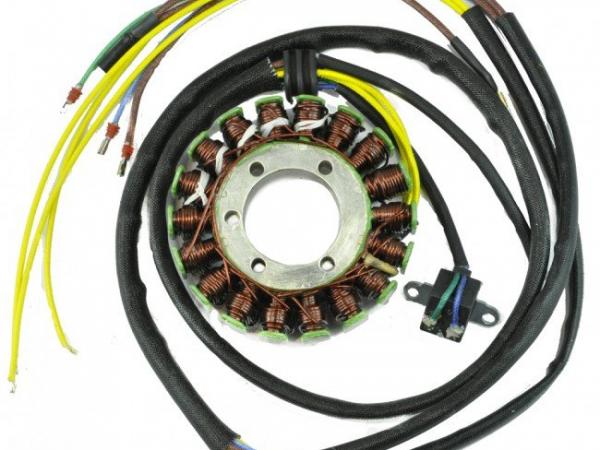

| Part | Stator Polaris ATV / UTV Ranger 400, Scrambler 500, Sportsman 400 / 450 / 500 |
| OEM/Part No. | RM01283 |
