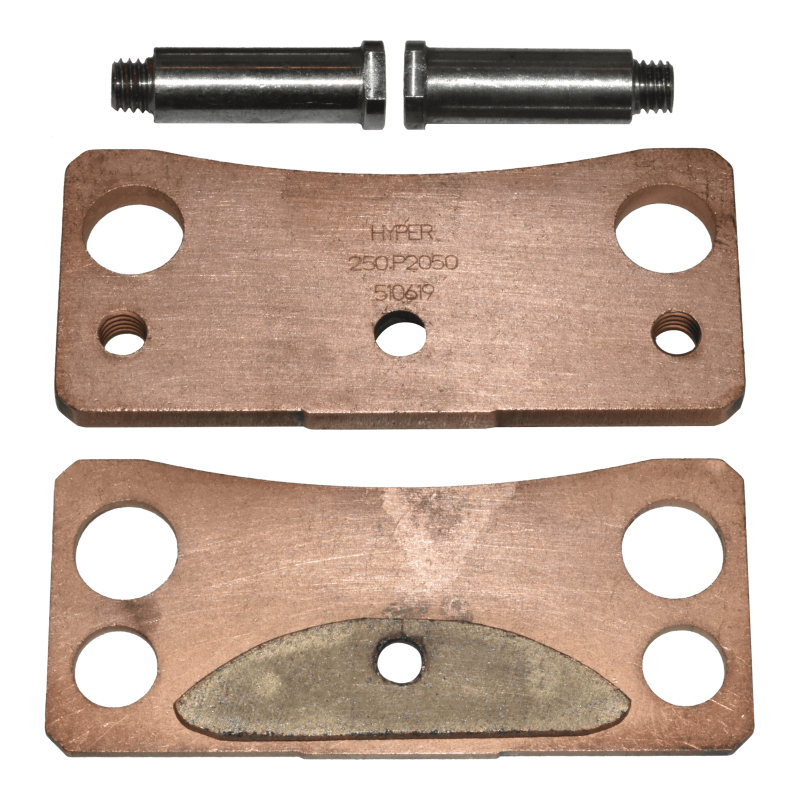

Disk Pad Set for Hand Brake | Polaris | Ranger 1000 2015-19Used On:POLARIS
Ranger 1000 Diesel (2015-19)
Ranger 570 2016-2021
RZR 1000 XP 2019 - 21 Fitting Manual (Receieved from a happy customer!)Fitting Instructions (from personal experience)1 Lift the cab and remove the bottom link of the gas strut for better access2 Remove the clevis pins from gear selector and handbrake cables3 Slacken the adjusting nuts of both cables so they come away from the bracket4 Remove the two bolts holding the bracket and pad assembly5 Note the orientation of the bracketpads and operating arm (they can be assembling in many different incorrect ways) and remove6 Remove the pad assembly and use cutting disc or saw to remove the rivetted pins7 Carefully open clean and lubricate the operating lever and spring mechanism (don’t lose the springs or the three loose ball bearings)8 Reassemble springs lever and new pads with supplied bolts (this is where step number 5 above really matters) 9 Refit in reverse order to above steps 10 Be pleased that you now have a good brake with better pads
| Type | Miscellaneous |
|---|---|
| Part | Hand Brake Polaris Ranger 1000 Diesel 2015-19 / Ranger 570 2016 - 2021 |
| OEM/Part No. | 250.P2050 |
