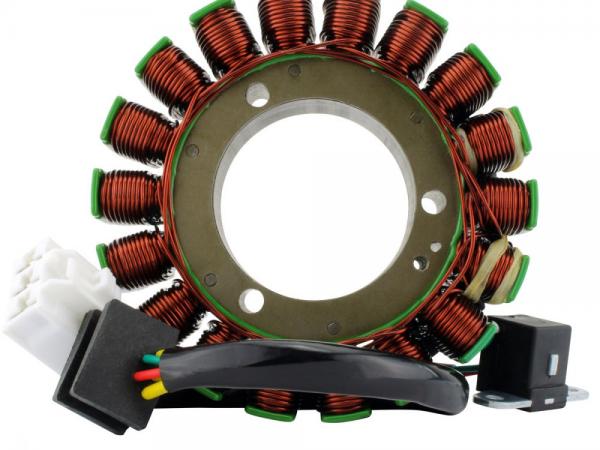

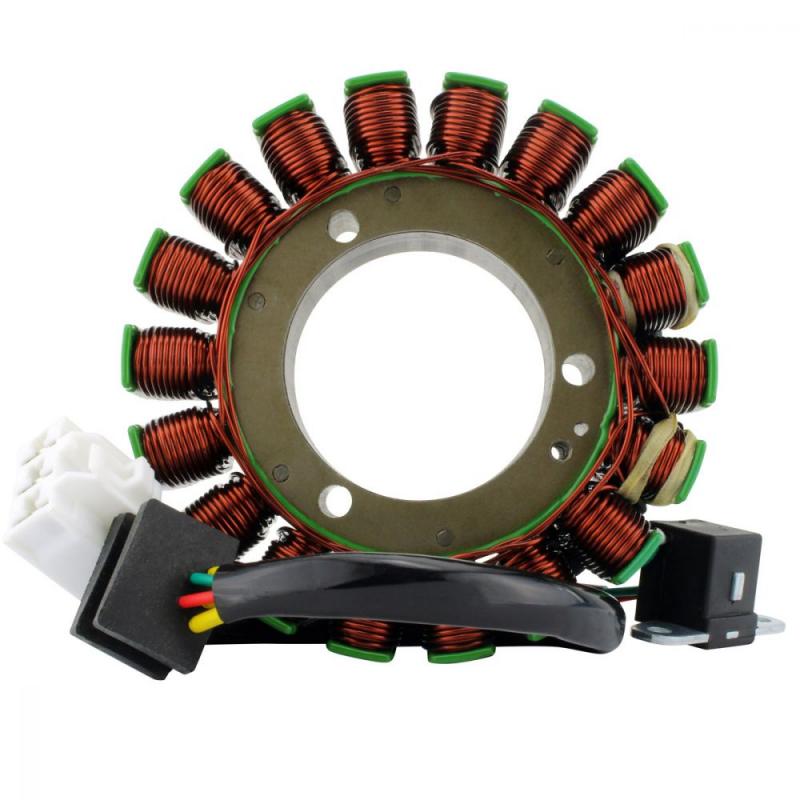

Miscellaneous Generator Stator for Suzuki VStorm 100 2014-2019

Miscellaneous Generator Stator for Suzuki VStorm 100 2014-2019

VEHICLE FITMENT2019 Suzuki DL 1000 V-Strom2018 Suzuki DL 1000 V-Strom2016 Suzuki DL 1000 V-Strom2015 Suzuki DL 1000 V-Strom2014 Suzuki DL 1000 V-StromSPECIFICATIONSDimensions:Interior diameter: 54 mmExterior diameter: 119 mmThickness: 26 mmLength of wires stator to grommet: 170 mmLength of wires grommet to plug: 270 mmLength of pickup coil's wire to grommet: 150 mmOther specifications:Number of wires: 5Number of plugs: 2Number of pins: 5Number of poles: 18Wire to wire resistance:Alternator: Yellow to Yellow = 0.6 ohms +-20%Alternator: Yellow to ground = O.LPickup: Green to Red = 192 ohms +-20%OEM#32101-31J00

Type Miscellaneous
Part Generator Stator for Suzuki VStorm 100 2014-2019
OEM/Part No. RMS010-107579

£161.98
