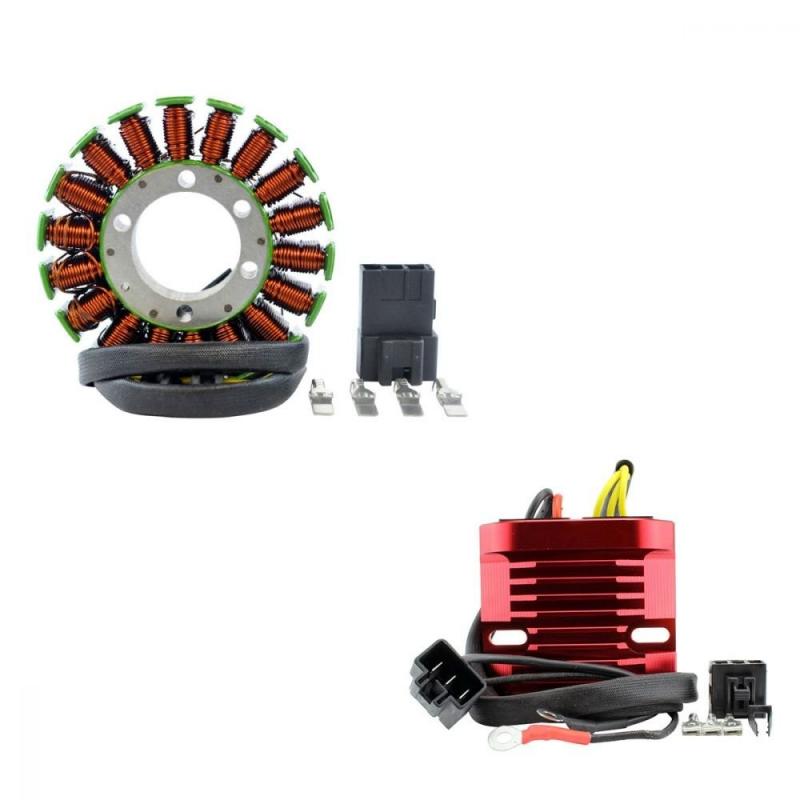

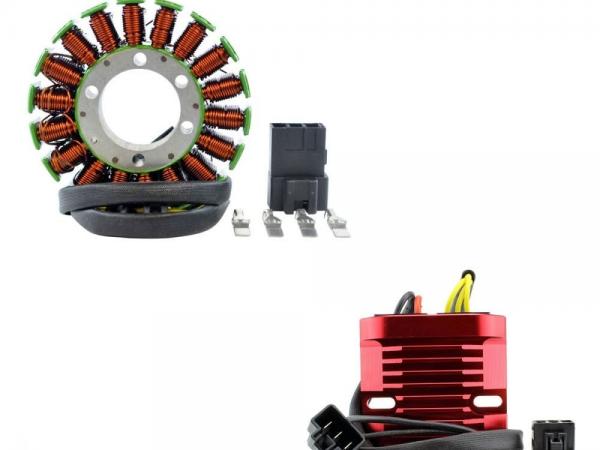

Stator/Aluminum Mosfet Reg - Honda VFR 800 Interceptor 02-09VEHICLE FITMENT
2009 Honda VFR 800 Interceptor
2008 Honda VFR 800 Interceptor
2007 Honda VFR 800 Interceptor
2006 Honda VFR 800 Interceptor
2005 Honda VFR 800 Interceptor
2004 Honda VFR 800 Interceptor
2003 Honda VFR 800 Interceptor
2002 Honda VFR 800 InterceptorSPECIFICATIONSStatorDimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 18 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 600 mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +-20%
Alternator: to ground = O.LRMSTATOR Red Machined Aluminum Mosfet Voltage Regulator RectifierDimensions:
Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 810 mm & 350 mm
Fixation holes center to center: 75 mmOther specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°INTERCHANGE PART NO107630-R00
| Type | Miscellaneous |
|---|---|
| Part | Stator/Aluminum Mosfet Reg - Honda VFR 800 Interceptor 02-09 |
| OEM/Part No. | RMS900-107630 |
