VEHICLE FITMENT2017 Suzuki Burgman AN 6502016 Suzuki Burgman AN 6502015 Suzuki Burgman AN 6502014 Suzuki Burgman AN 6502013 Suzuki Burgman AN 650SPECIFICATIONSDimensions:Interior diameter: 58 mmExterior diameter: 130 mmThickness: 19 mmLength of wires stator to grommet: 80 mmLength of wires grommet to plug: 180 mm & 1000 mmLength of pickup coil's wire to grommet: 30 mmOther specifications:Number of wires: 5Number of plugs: 2Number of pins: 5Number of poles: 18Wire to wire resistance:Alternator: Yellow to Yellow = 0.4 ohms +-20%Alternator: Yellow to ground = O.LPickup: Blue to Green = 200 ohms +-20%OEM:32101-26J00
| Type | Miscellaneous |
|---|---|

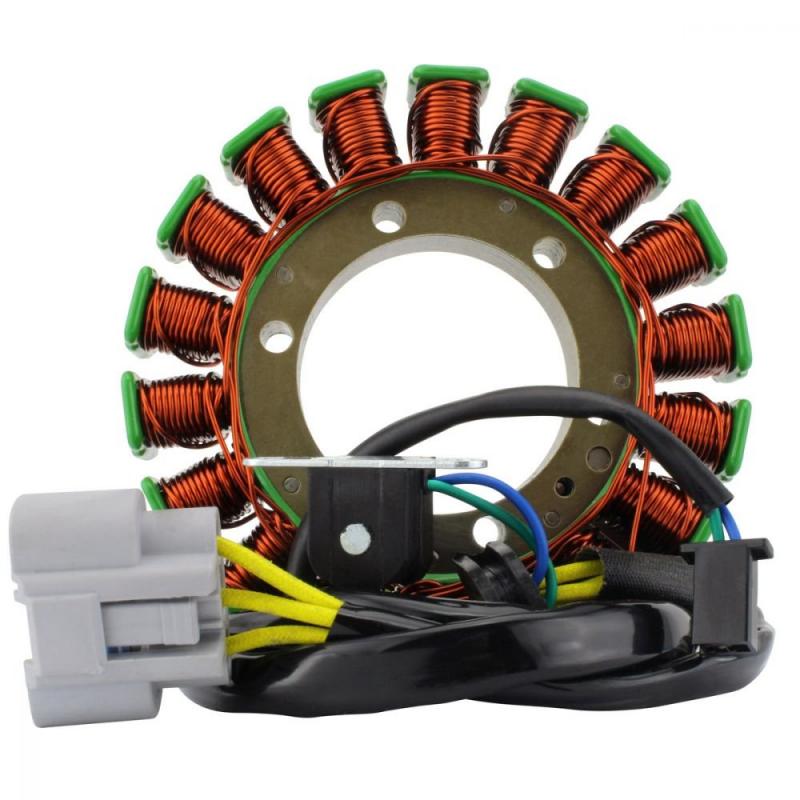

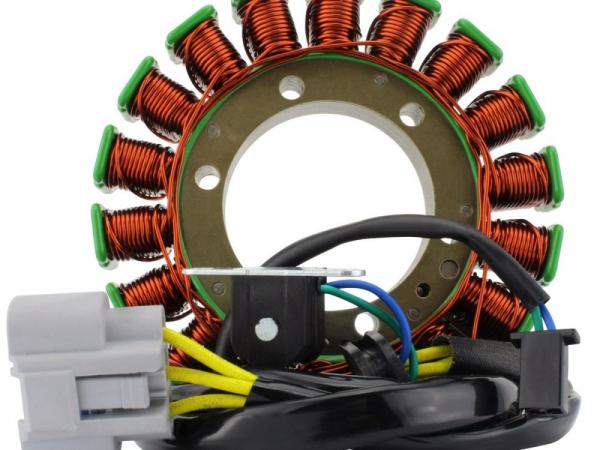

| Part | Stator for Suzuki Burgman AN 650 2013-2017 |
| OEM/Part No. | RMS010-107591 |
